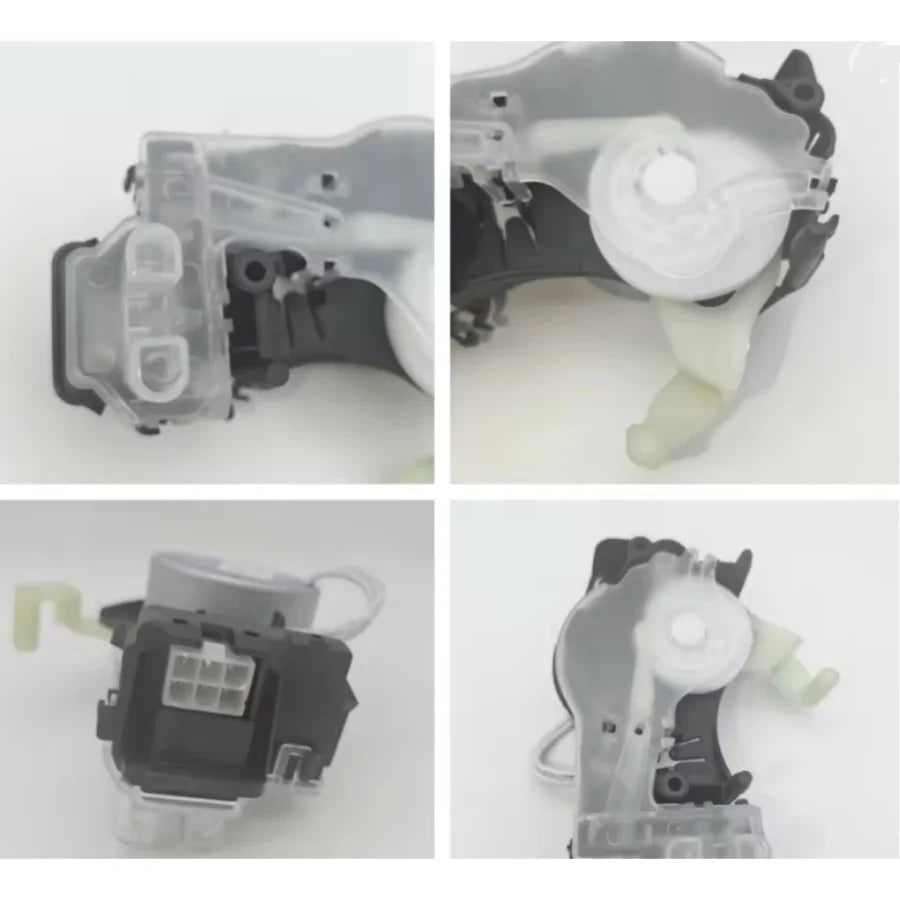

W11511138 Washer Shift Actuator Replacement (Replaces W10815027) for Whirlpool Maytag Amana Kenmore Washing Machines – Compatible with Various Top-Load Models

Product Overview

Restore proper agitation, spin, and cycle shifting to your top-load washing machine with this high-quality W11511138 replacement shift actuator (also replaces W10815027). This actuator controls the motor mode shift between agitation and spin, fixing common issues like no agitation, no spin, washer stuck in one mode, loud clicking noises, or error codes (e.g., F7E1) caused by failed or worn actuators from daily use. Easy to install – basic tools required (Phillips screwdriver, 5/16" nut driver). Perfect for DIY repairs or professional use, this part ensures reliable performance and long-lasting durability.

Key Features

• OEM Equivalent Part Number: W11511138 (replaces W10815027, W10597178, W10913952, W11398782)

• Color: Black/Plastic (matches most Whirlpool/Maytag models)

• Material: Durable plastic housing with electrical connector – resistant to wear and vibration

• Function: Shifts motor modes (agitate to spin) + engages transmission for proper cycle operation

• Installation: Direct replacement, takes 10-20 minutes (screw-on design under washer)

• Durability: Built to withstand frequent cycles in household washers

• Compatibility Guarantee: Fits select Whirlpool, Maytag, Amana, Kenmore, Admiral, and cross-brand top-load washers – verify your part number before purchase

Installation Instructions

Follow these step-by-step instructions to install the W11511138 shift actuator on your Whirlpool/Maytag top-load washer. Tools needed: Phillips screwdriver, 5/16" nut driver. Always unplug the washer before starting for safety.

1. Prepare the Washer: Unplug the washing machine from power. Tilt or lay the washer back (support safely) to access the underside, or remove the rear access panel if applicable.

2. Locate the Actuator: Under the washer near the transmission/gear case, find the shift actuator (small black box with wiring harness attached to the shifter arm).

3. Remove the Old Actuator: Disconnect the wiring harness (press tab and pull). Remove the mounting screws (usually 2-3) holding the actuator. Carefully lift off the old unit (note orientation).

4. Install the New Actuator: Position the new W11511138 actuator in the same spot. Secure with screws. Reconnect the wiring harness firmly.

5. Reassemble and Test: Return the washer to upright position. Plug in and run a test cycle (e.g., rinse/spin) to check for proper shifting, no noises, and full agitation/spin.

⚠️ Safety Tip: If tilting the washer, drain water first and get help for heavy lifting. If unsure or error persists, consult a professional technician. Improper installation may cause damage or void warranties.

Compatibility / Fit Models

This shift actuator is compatible with many top-load washing machine models from Whirlpool, Maytag, Amana, Kenmore, Admiral, and related brands (full list based on verified compatibility from parts suppliers, OEM cross-references, and repair sites; always confirm with your washer's model/serial number on the rating plate):

⚠️ Important Note: Compatibility depends on production year and exact model. Always cross-check your original part number (W11511138, W10815027, or equivalents) or washer model before ordering to ensure perfect fit. This is a non-OEM replacement but meets or exceeds original specifications.

Applications

• Ideal for replacing failed shift actuators causing no agitation/spin or cycle errors on Whirlpool/Maytag top-load washers

• Suitable for home DIY repairs, appliance technicians, service centers, and parts distributors

• Restores full wash cycle functionality quickly and affordably

Package Includes

• 1 × Washer Shift Actuator (W11511138 Compatible, replaces W10815027)

• No additional parts included (direct replacement only)
