D0AD German for Time Zone DCF Radio Controlled Silent Wall Clock Movement Mechanism DIY

D0AD German for Time Zone DCF Radio Controlled Silent Wall Clock Movement Mechanism DIY

Default Title
€60,73
Skip to product information
D0AD German for Time Zone DCF Radio Controlled Silent Wall Clock Movement Mechanism DIY

D0AD German for Time Zone DCF Radio Controlled Silent Wall Clock Movement Mechanism DIY

€60,73
Default Title

SPECIFICATIONS

Battery Included: no

Brand Name: NONE

Choice: yes

High-concerned chemical: None

Is Smart Device: no

Origin: Mainland China

Type: Wall Clocks

semi_Choice: yes

brand new and high quality.
OOTDTY
Features:

The clock can automatically synchronize with the official German DCFTime.
Quality clock movement with long for lifetime.
for Ideal for replacing defective units or for creating your own clock projects.
Energy efficient. Accurate for time keeping.
The coil has high permeability, low resistivity and power saving.
Suitable for repairing, replacing or making a clock.

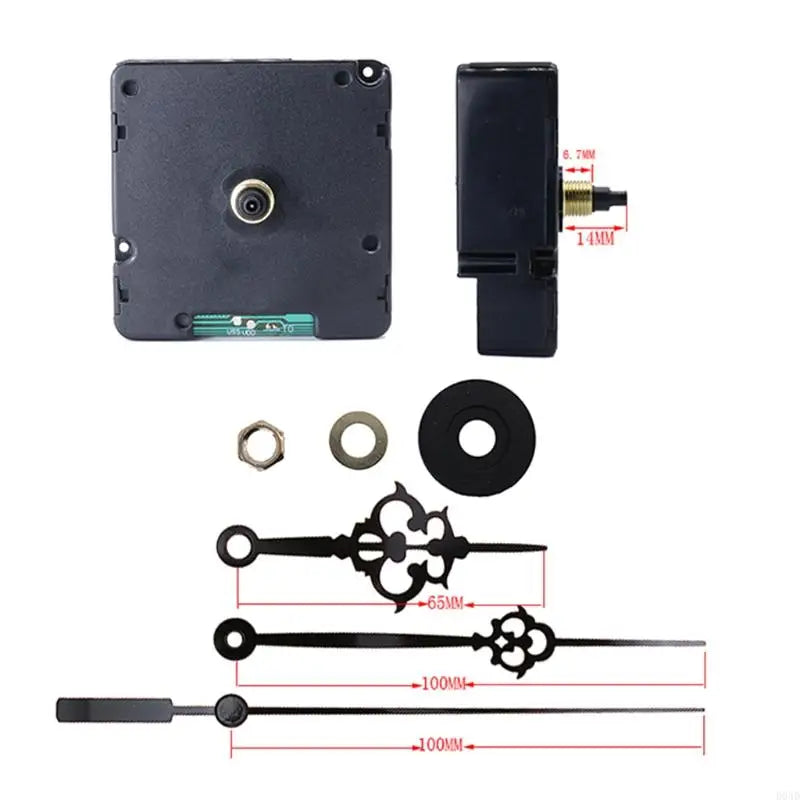

Specifications:

Material: Plastic and Metal
Hose Size: approx.56x56x19mm/2.20x2.20x0.75in
Shaft Length: approx.17mm/0.67in
Second hand length: 100mm/3.94in
hand length: 100mm/3.94in
Hour hand length: 65mm/2.56in
Thread length: 17mm/0.67in
Suitable for 3mm thickness clock panel.
crystal frequency: 32.768KHz
Travel for time accuracy: ±30Sec/Month (1.5V for DC. 25°C)
Current consumption: Less than 120μA (1.5V for
Working 13v to 1.7v
Operating temperature: -10 °C to 50 °C
Rated 1.5V
Battery Life (Specifications): Approx. Year (UM-3)
Second hand output torque: ≤0.6gf-cm (1.5V)
hand output torque: ≤30gf-cm (1.5V)
Color: As pictures shown
Quantity: 1 Set

Note:

Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:

1 Set x Clock Movement Repair Tools(other accessories in the picture is not included.)
